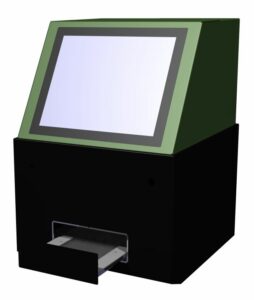

The LabImager MR –  Fully automated Microscope for routine use

The LabImager MR (MR = Microscope Reader) is an analyzer for imaging procedures in routine, diagnostics and research. It combines the benefits of a digital and completely enclosed microscope and the fully automatic analysis of the data using a software for control and analysis in one system. The LabImager MR is the first device of its class with an easy possibility of the adaption of Apps. It also provides a larger sample holder (2 x microtiter plates (MTP) format) and is optimized for several popular slides (MTP, glass slide, arrays, Neubauer chamber).

It will be complemented with a totaly new concept of touch based imaging apps running on the device. We call it Multi-Mode Multi-App (3MA). Read more on the details.

The device development is in progress and available as demonstration unit.


Optic: 1.2x–40x optic with two exchangeable objectives

Camera: 16 bit CCD/CMOS, (depending on requirements)

Sample movement: XYZ table with 130 x 170 mm travel path, 2 times micro plate

Lighting: White light, 4 different fluorescence incl. Filter (FITC, DAPI, Cy5, Cy7

Software: LabImage Apps for different use cases according to request
